TSCP18-24-1.5F / TSCP11-36-2.2F

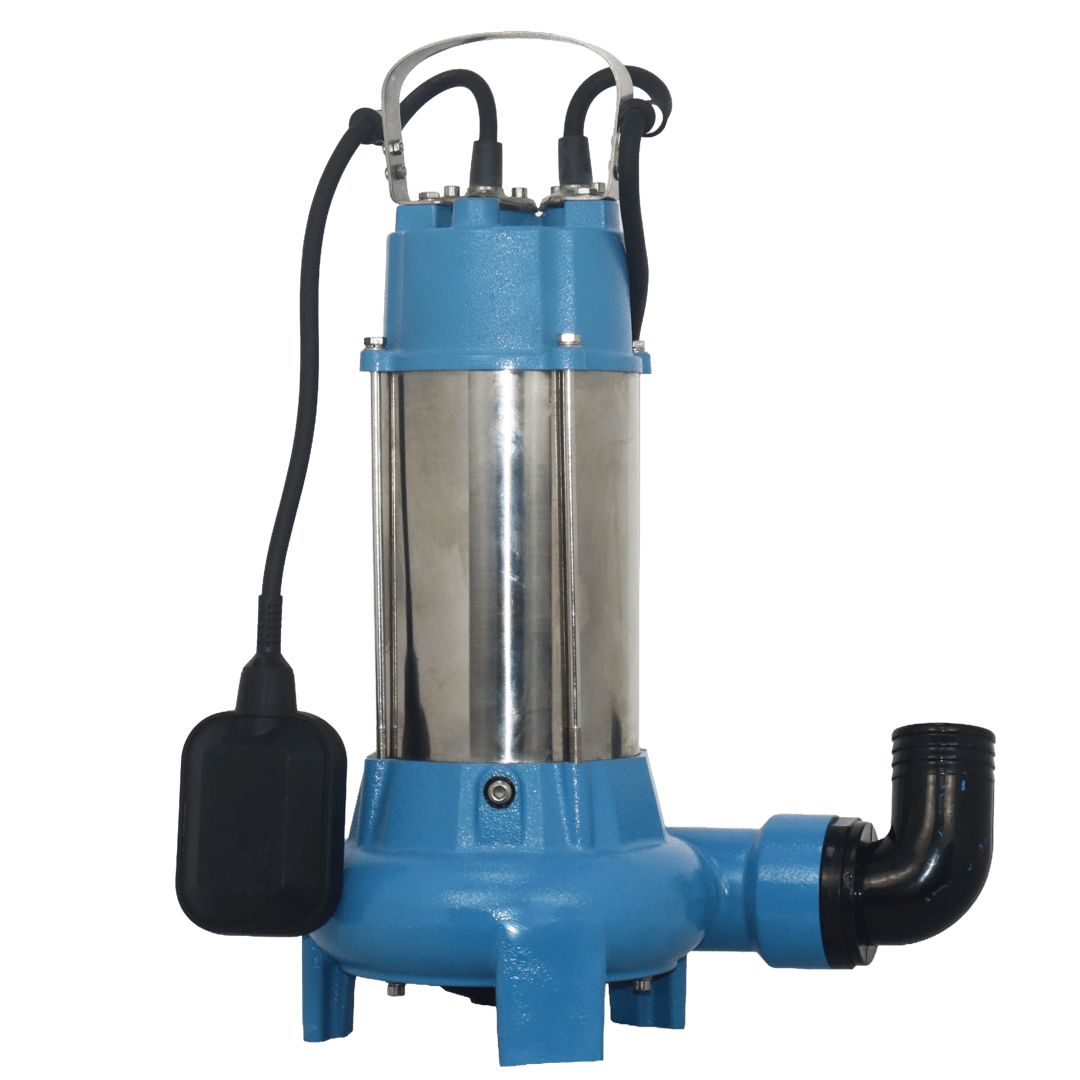

TSCP18-24-1.5F & TSCP11-36-2.2F | Single-Phase Submersible Sewage Cutter Pumps
description Overview
TSCP18-24-1.5F & TSCP11-36-2.2F | Single-Phase Submersible Sewage Cutter Pumps
These single-phase sewage cutter pumps are made to grind and pump tough waste that normal sewage pumps cannot handle. A high-speed cutter at the inlet shreds soft solids, rags and fibres so the impeller never blocks. The 1.5 kW model delivers up to 24 m³/hr and the 2.2 kW model up to 36 m³/hr, both on a standard 220-240V single-phase supply.
Both models are IP68 sealed, rated for continuous (S1) duty and fitted with a built-in motor protector that shuts the pump off on overheating or overload. They are a dependable choice for kitchen waste, sewage pits, municipal drainage and agricultural manure handling.
check_circle Key Features
- High-speed cutter at the inlet slices soft solids, cloth and fibres for clog-free pumping.
- Macerates tough waste that ordinary sewage pumps cannot handle.
- IP68 fully sealed motor for safe continuous underwater operation.
- Built-in motor protector auto-cuts power on overheating or overload.
- Class F insulation with S1 continuous duty for reliable daily use.
- Handles a wide pH range of 4.0 to 10.0 and liquids up to 1.2 g/cm³ density.
- Cast-iron build for long life in harsh, abrasive conditions.
handyman Applications
- Kitchen and household waste water drainage.
- Small sewage pits and basement dewatering.
- Scum and effluent transfer at treatment setups.
- Light commercial and municipal drainage.
- Pumping water containing soft solids, rags and fibres.
settings Technical Specifications
| Specification | TSCP18-24-1.5F | TSCP11-36-2.2F |
|---|---|---|
| Power (kW) | 1.5 | 2.2 |
| Power (HP) | 2.0 | 3.0 |
| Voltage | 220-240V (1-Phase) | 220-240V (1-Phase) |
| Speed (RPM) | 2900 | 2900 |
| Outlet | 2.5" | 3" |
| Max Flow (m³/h) | 24 | 36 |
| Max Head (m) | 10 | 11 |
| Cutter System | High-speed scissor cutter | High-speed scissor cutter |
| Protection Rating | IP68 | IP68 |
| Duty | S1 Continuous | S1 Continuous |
| Net Weight (kg) | 28.5 | 33.0 |
table_chart Performance Data
Drag to pan · Tap Expand for full-screen view.
| MODEL | POWER | Q | US GPM | 0 | 13 | 26 | 40 | 53 | 66 | 79 | 92 | 106 | 135 | 162 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KW | HP | M³/H | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 21 | 24 | 30 | 36 | ||
| LPM | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 500 | 600 | ||||
| TSCP18-24-1.5F | 1.5 | 2 | HEAD (MTR) | 10 | 9.2 | 8.6 | 8 | 7.2 | 6 | 4.8 | 3.8 | 2.3 | |||
| TSCP11-36-2.2F | 2.2 | 3 | 11 | 10.5 | 10.2 | 10 | 9.8 | 9.5 | 8.8 | 8.6 | 8.4 | 5 | 2.4 | ||
