TCSS 1.0

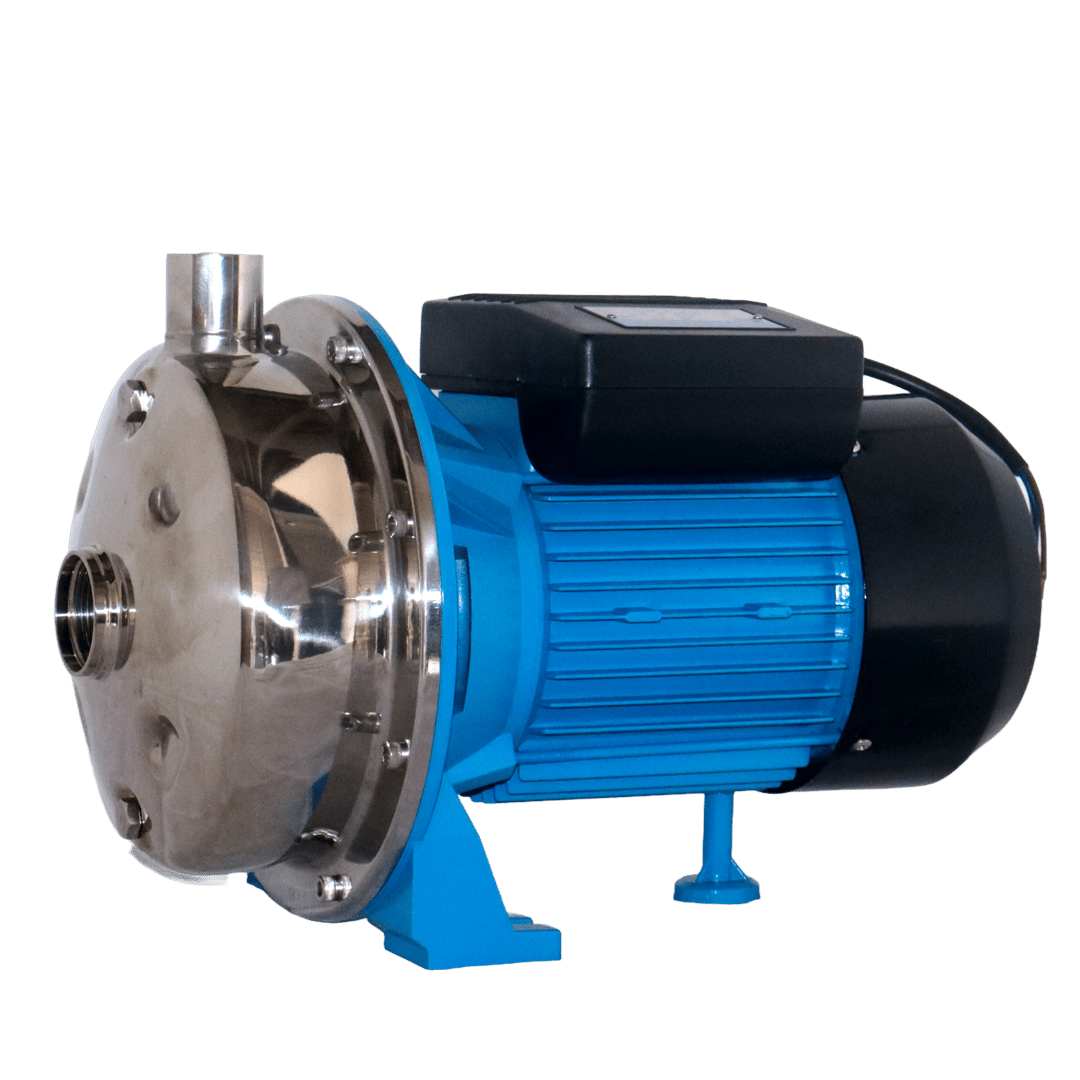

TCSS 1.0 (1.0 HP) | Centrifugal Stainless Steel Pump
description Overview
TCSS 1.0 (1.0 HP) | Centrifugal Stainless Steel Pump
The TCSS 1.0 is a high-quality 1.0 HP centrifugal pump built completely with premium stainless steel components. Because the main pump body and spinning blades (impeller) are made of strong SS 304 stainless steel, this pump is completely safe from rust and is perfect for handling clean, pure water.
It is highly reliable for daily home water supply, high-pressure washing systems, and specialized uses like pure water treatment. Built with a strong copper-wound motor, it is designed to run smoothly, safely, and continuously without overheating.
check_circle Key Features
- Premium Stainless Steel: The body and impeller are made of SS 304 for total rust protection.
- Integrated Safety: Built-in thermal protection automatically keeps the motor safe from overheating.
- Heavy-Duty Motor: High-quality copper winding ensures reliable, continuous daily use.
- Leak-Proof Design: Secure mechanical shaft seal and O-ring prevent any water leaks.
- Pure Water Safe: Excellent for pumping clean drinking water or handling light industrial liquids.
handyman Applications
- Water Supply Systems
- Pressure boiler feeding
- Pure water treating systems
- Refining & chemical industries
- Washing & Sprinkling
settings Technical Specifications
table_chart Performance Data
Drag to pan · Tap Expand for full-screen view.
| MODEL | POWER | SUC X DEL | M³/HR | 0 | 1.2 | 2.4 | 3.6 | 4.8 | 6 | 7.2 | 8.4 | 9.6 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KW | HP | LPM | 0 | 20 | 40 | 60 | 80 | 100 | 120 | 140 | 160 | ||
| TCSS 1.0 | 0.75 | 1 | 1.25" X 1" | H (Meters) | 25 | 22.5 | 21.5 | 20 | 17.5 | 14.5 | 11 | ||
| TCSS 1.5 | 1.1 | 1.5 | 1.25" X 1" | 34 | 32 | 30 | 28 | 26 | 23 | 20 | 16.5 | 12.5 | |
