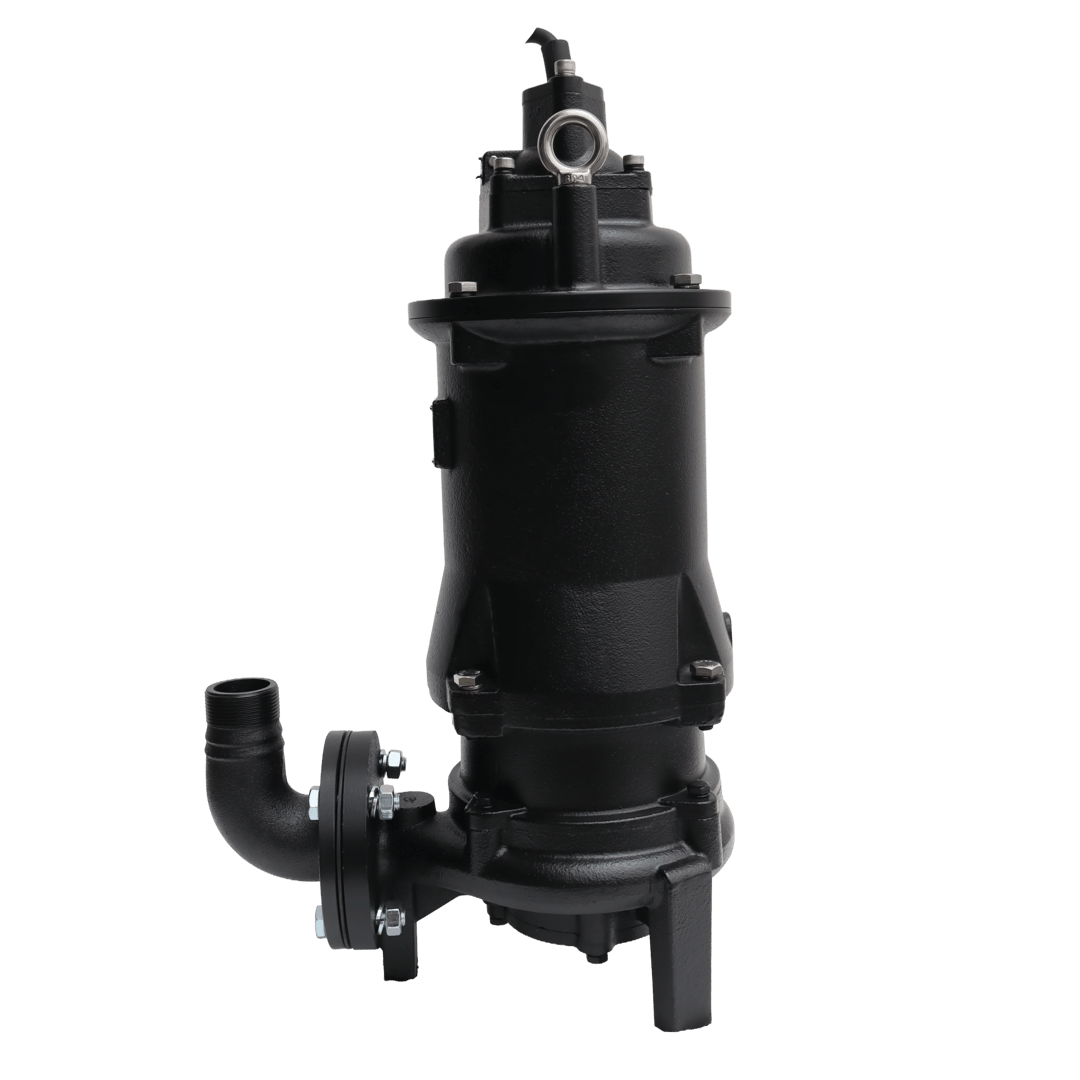

TSCP11-16-1.1F (1.5 HP) | Submersible Sewage Cutter Pump
description Overview
TSCP11-16-1.1F (1.5 HP) | Submersible Sewage Cutter Pump
The TSCP11-16-1.1F is a 1.5 HP single-phase submersible sewage cutter pump built to handle dirty water and sewage that would clog an ordinary pump. A high-speed cutter at the inlet slices through soft solids, cloth and fibres before they reach the impeller, giving smooth, clog-free pumping. Through its 2-inch outlet it moves up to 275 litres per minute (16.5 m³/hr) against a head of 10 metres.
Sealed to IP68 and rated for continuous (S1) duty, it is ideal for kitchen waste water, small sewage pits, basements and home or light commercial drainage. The built-in motor protector automatically cuts power if the motor overheats or is overloaded, keeping the pump safe even in tough conditions.
check_circle Key Features
- High-speed cutter at the inlet slices soft solids, cloth and fibres for clog-free pumping.
- Macerates tough waste that ordinary sewage pumps cannot handle.
- IP68 fully sealed motor for safe continuous underwater operation.
- Built-in motor protector auto-cuts power on overheating or overload.
- Class F insulation with S1 continuous duty for reliable daily use.
- Handles a wide pH range of 4.0 to 10.0 and liquids up to 1.2 g/cm³ density.
- Cast-iron build for long life in harsh, abrasive conditions.
handyman Applications
- Kitchen and household waste water drainage.
- Small sewage pits and basement dewatering.
- Scum and effluent transfer at treatment setups.
- Light commercial and municipal drainage.
- Pumping water containing soft solids, rags and fibres.
settings Technical Specifications
table_chart Performance Data
Drag to pan · Tap Expand for full-screen view.
| MODEL | POWER | OUTLET | PHASE | M³/ HR | 0 | 1.5 | 3 | 4.5 | 6 | 7.5 | 9 | 10.5 | 12 | 13.5 | 15 | 16.5 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KW | HP | LPM | 0 | 25 | 50 | 75 | 100 | 125 | 150 | 175 | 200 | 225 | 250 | 275 | |||
| TSCP11-16-1.1F | 1.1 | 1.5 | 2" | 1 | H (M) | 10 | 9.9 | 9.4 | 9 | 8.5 | 8 | 7.4 | 6.9 | 6 | 5.2 | 4 | 2.5 |
