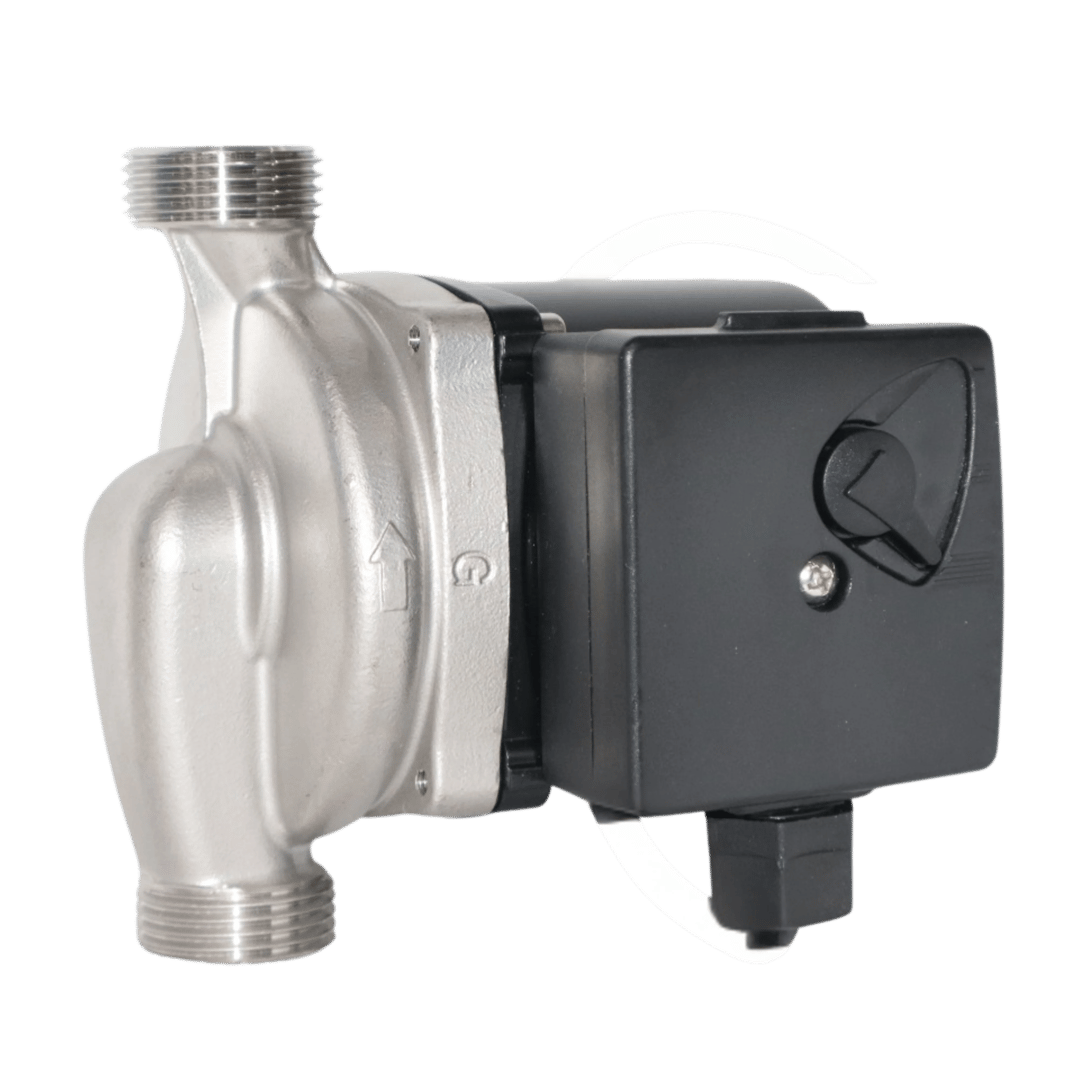

water_pump Circulation Water Pump
Circulation Water Pump
TRS Series | Circulation Water Pump
Power
93 / 67 / 46 W (3-speed) / 72 / 53 / 38 W (3-speed)
Max Head
6 m / 4.5 m
Max Flow
44 LPM / 56 LPM
Voltage
220-240 V, 50Hz
description Overview
TRS Series | Circulation Water Pump
The Texmo TRS series is a wet-runner circulation pump built to move water around heating, air-conditioning, cooling and domestic hot-water systems. It runs quietly, resists lime and corrosion, and uses manual 3-speed control so you can match the flow to your system.
Available in two models — TRS15/6-130 and TRS25/4-180 — it delivers up to 45 LPM flow and up to 6 m head, powered by a single-phase 220-240 V motor with IP54 protection and Class H insulation for reliable, everyday operation.
check_circle Key Features
- TEXMO TRS Series circulation pump designed for water circulation in heating, air-conditioning and domestic hot water systems.
- Full-caliber specification range that efficiently meets the user’s parameter needs.
- Multi-speed operation adapts to the system requirement.
- Quick and simple electrical installation.
- Dry-running protection guards the pump during startup and normal operation.
- Easy to clean and lime-resistant.
- High-quality wet-runner technology for quiet, low-noise operation.
- Corrosion-resistant impeller and pump housing.
handyman Applications
- Boiler / hydronic heating systems
- Heating systems
- Cooling systems
- Domestic hot water recirculation
- Solar water heating systems
settings Technical Specifications
swipe Drag to pan
| Specification | TRS15/6-130 | TRS25/4-180 |
|---|---|---|
| Power | 93 / 67 / 46 W (3-speed) | 72 / 53 / 38 W (3-speed) |
| Voltage | 220-240 V, 50Hz | 220-240 V, 50Hz |
| Phase | Single Phase | Single Phase |
| Speed | 2900 RPM | 2900 RPM |
| Max Flow | 44 LPM | 56 LPM |
| Max Head | 6 m | 4.5 m |
| Inlet / Outlet | 1" x 1" | 1.5" x 1.5" |
| Net Weight | 2.1 kg | 2.4 kg |
| Speed Control | Manual 3-speed | Manual 3-speed |
| Protection Class | IP54 | IP54 |
| Insulation Class | H | H |
| Max Liquid Temp | 130°C | 130°C |
| Max Ambient Temp | 40°C | 40°C |
| Max Working Pressure | 10 bar | 10 bar |
| Liquid pH | 6-8 | 6-8 |
| Noise Level | ≤ 45 dB | ≤ 45 dB |
table_chart Performance Data
Drag to pan · Tap Expand for full-screen view.
swipe Drag to pan
| Model | Power (watt) | Voltage (50Hz) | Speed (RPM) | Inlet / Outlet | Maximum | Net Weight (Kg) | |
|---|---|---|---|---|---|---|---|
| Flow (LPM) | Head (MTR) | ||||||
| TRS15/6-130 | 93/67/46 | 220-240 V | 2900 | 1"X1" | 44/35/20 | 3/5/6 | 2.1 |
| TRS25/4-180 | 72/53/38 | 220-240 V | 2900 | 1.5"X1.5" | 56/38/22 | 3/4/4.5 | 2.4 |
Get a price for the Circulation Water Pump
Available directly from the manufacturer for worldwide export. Contact your nearest office for pricing, stock & lead times.
