Description

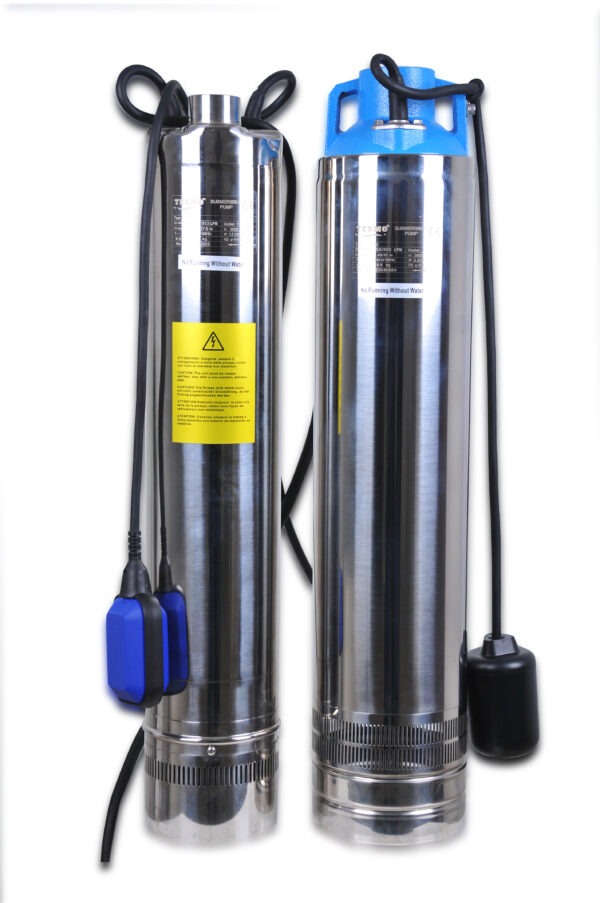

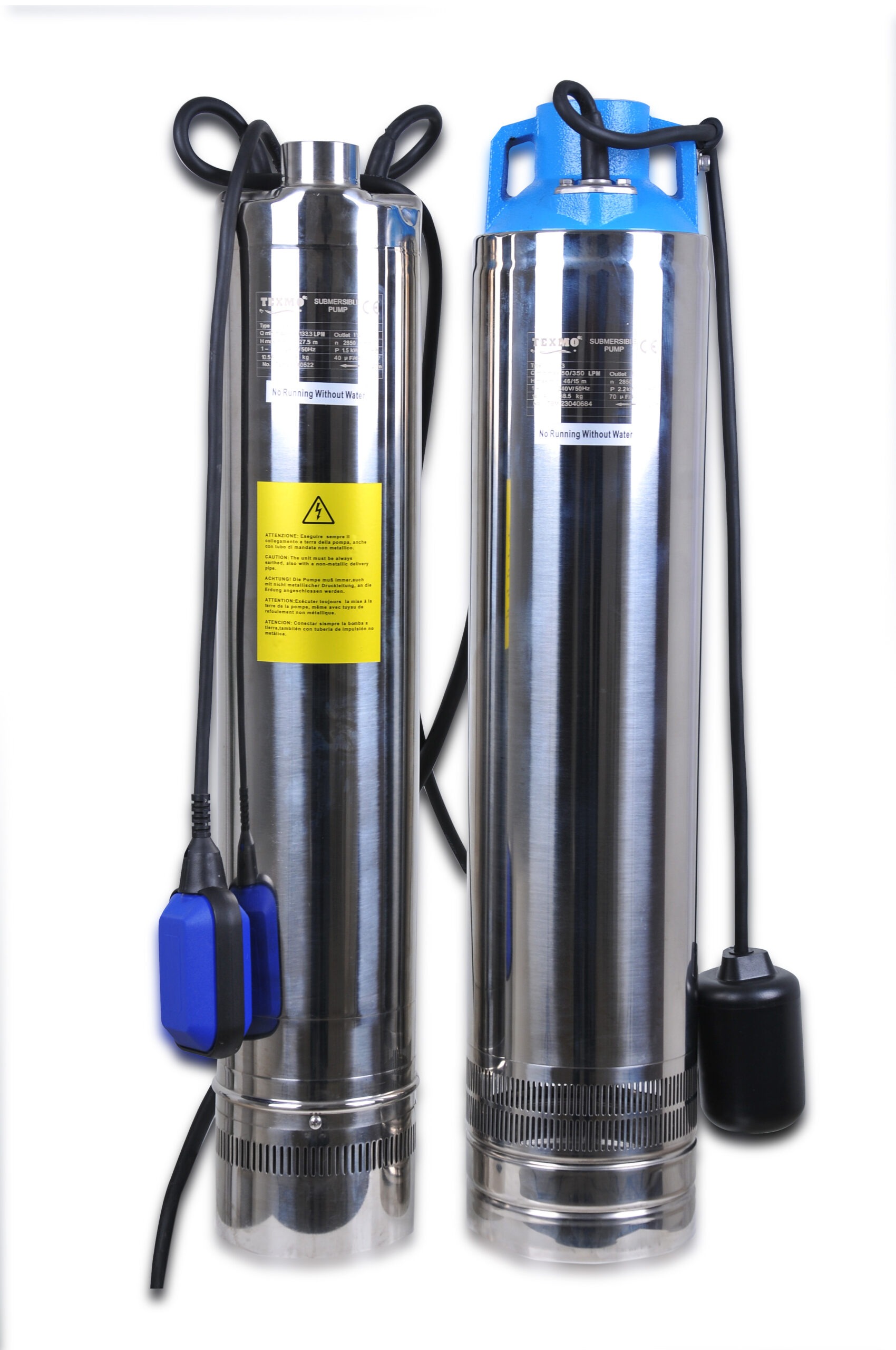

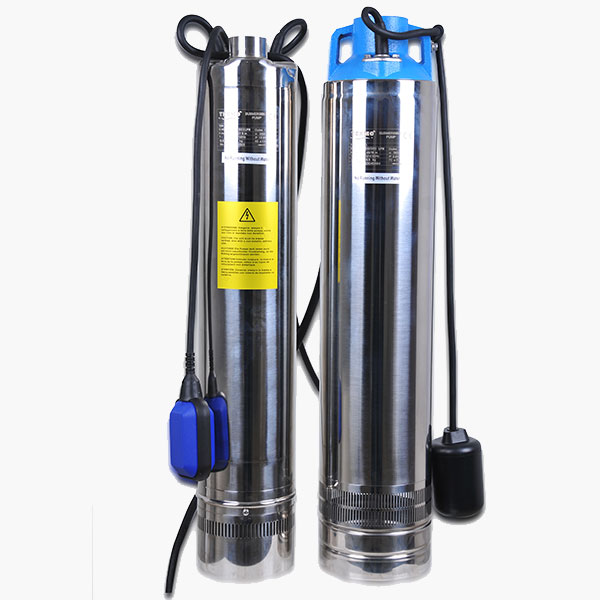

Texmo Pump’s open well pumps are designed to efficiently draw water from open wells or reservoirs for various applications. Available in horsepower options of 1HP, 1.5HP, 2HP, and 3HP, these pumps cater to a wide range of water lifting requirements.

Key Features:

1. Single Phase Operation: Texmo’s open well pumps operate on single-phase power supply, ensuring compatibility with most residential and small-scale commercial setups.
2. Built-in Capacitor and Thermal Protector: Equipped with a built-in capacitor and thermal protector in the control box, these pumps offer enhanced safety and protection against voltage fluctuations and overheating.
3. Operating Temperature: Designed to withstand temperatures of up to 35°C, these pumps are suitable for use in various climatic conditions, ensuring reliable performance even in hot environments.
4. Compact Design: With dimensions of 132mm, Texmo’s open well pumps feature a compact and space-saving design, making installation and maintenance hassle-free.
5. Float Switch Integration: Each pump comes with a float switch attached, allowing for automatic operation based on water level fluctuations. This feature ensures efficient water management and prevents pump damage due to dry running.
6. Long Cable Length: The pump is supplied with a generous cable length of 40 meters, providing flexibility in installation and allowing for convenient positioning of the pump within the well or reservoir.

Applications:

• For water supply from open wells, tanks or reservoirs.
• For domestic use, civil and industrial applications.
• For garden and irrigation, Utilization of rain water.

Specification:

• Water temperature: UP TO  35°C
• Minimum internal diameter of well :  132mm.
• Maximum immersion depth: 20m suitable (with cable length)
• PH: 6.5 TO 8.5
• Cable Length :  40mtr.
• Hydraulic part under the motor and motor cooled by the pumped water for safe operation also with the pump only partially immersed.
• Double shaft seal with interposed oil chamber.
• The suction strainer prevents the entrance of solids with Diameter bigger than 2 mm.
